Snowflake

metadata fields

Example: configs/config_snowflake.json

Field	Required	Description
mysqlHost	Y	mysql server address, such as localhost:3306
userName	Y	mysql username
password	Y	mysql password
databaseName	Y	mysql database name
tableName	N	mysql table name
timeBits	N	time id size, default value is 28
workerBits	N	worker id size, default value is 22
seqBits	N	sequence id size, default value is 13
startTime	N	time base, default value is “2022-01-01”
reqTimeout	N	id request timeout. Default is 500 milliseconds
keyTimeout	N	timeout of key namespace. The default is 24 hours

Overall design

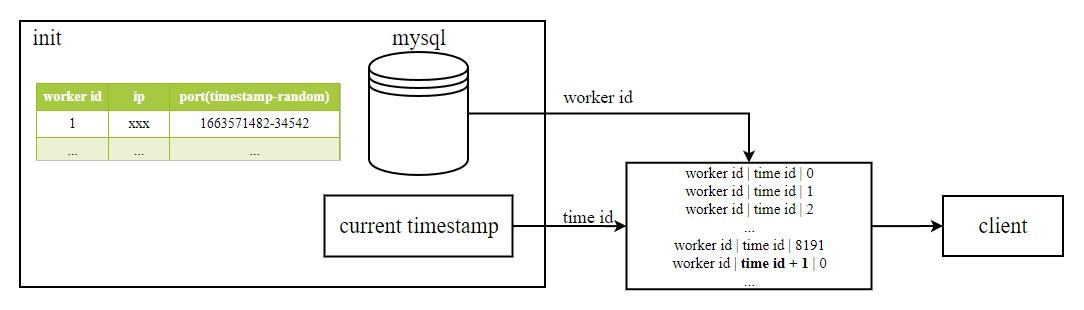

The overall design of the id generated by the snowflake algorithm is as follows:

How to start mysql

If you want to run the mysql demo, you need to start a mysql server with Docker first.

If port 3306 is occupied by other services, you need to exit other services first

docker pull mysql:latest
docker run --name snowflake -d -p 3306:3306 -e MYSQL_ROOT_PASSWORD=123456 -d mysql
docker exec -it snowflake bash
mysql -uroot -p123456

You need to create a new database:

CREATE DATABASE layotto_sequencer;

Run layotto

cd ${project_path}/cmd/layotto
go build

If build reports an error, it can be executed in the root directory of the project go mod vendor

Execute after the compilation is successful:

./layotto start -c ../../configs/config_redis.json

Run Demo

cd ${project_path}/demo/sequencer/redis/
 go build -o client
 ./client -s "sequencer_demo"
